Adxv - A program to display X-Ray diffraction images

    Adxv can be used to display and analyze 2-D area detector data. It is optimized to display X-Ray crystallography diffraction images. The data may be displayed as a 1-D cross section, 2-D image or 3-D surface. Sequential images may be displayed as an animation. The magnification, contrast and color mapping are adjustable. Displayed data may be saved in a variety of formats including ASCII, SMV/IMG, TIFF, JPEG and Postscript. Adxv will run on most versions of Linux and OSX. It is based on X11/Motif so an X-server is required. It will run on Windows if the Cygwin libraries and X-server have been installed.

    Many common detector and data formats are recognized, including:

    • ADSC
    • Mar ccd
    • Mar image plate (old and new format)
    • Raxis II & IV
    • Crystallographic Binary Format (CBF)
    • XDS .pck files
    • European Data Format (EDF)
    • Numerical Python (NUMPY)
    • Hierarchical Data Format (HDF5)
    • Tagged Image File Format (TIFF)
    • Raw binary integer and floating point data

    Adxv is freely available to everyone. There is no registration, license or fee required to use it.

    Usage

    adxv [options] [file [predictions]]

    Options (see the manual for a complete list)

    -autoload Automatically load images specified in $XFORMSTATUSFILE
    -beam_center X Y Beam Center (mm)
    -distance X Distance (mm)
    -flip H/V Flip image about a Horizontal or Vertical axis
    -gl Use OpenGL for 3-D display
    -int File is binary signed int's
    -no_adxv_beam_center Do not read or write the .adxv_beam_center file
    -nx N Number of pixels in horizontal direction
    -ny N Number of pixels in vertical direction
    -overload N Pixel overload value
    -pixelsize X Pixelsize (mm)
    -rotate N Rotate image 90, 180 or 270 degrees
    -short File is binary signed short's
    -skip N Skip N bytes before reading binary data
    -twotheta X 2-Theta (degrees)
    -ushort File is binary unsigned short's
    -wavelength X Wavelength (angstroms)

    Here are some examples

    Display ADSC .img file:
    adxv nnos6_1_001.img
    Use OpenGL for the 3-D display:

    adxv -gl

    Display 1152x1152 binary unsigned short data, skip 2048 byte header and swap bytes:

    adxv -ushort -nx 1152 -ny 1152 -skip 2048 -swap

    Display .img file and denzo predictions:

    adxv nnos6_1_001.img nnos6_1_001.x

    Print usage and help information:

    adxv -help

    More documentation is available under the "Help" pulldown in the Adxv Control window and in the manual.

    Questions

    Is there any license or fee for using Adxv?

    No, it is free for anyone to use.

    What to do if Adxv complains about missing fonts?

    You can download all the fonts Adxv needs from fonts.tar.gz Put this file in a directory (i.e. /usr/share/adxvfonts/) and type:

    gunzip --stdout fonts.tar.gz | tar xvf -
    Then run Adxv with the font path option:

    adxv -fp /usr/share/adxvfonts
    Note that this directory must be located on the X server.

    You can also install the missing fonts, which should be in these packages:

    xorg-x11-fonts-75dpi.noarch
    xorg-x11-fonts-ISO8859-1-75dpi.noarch

    What if I download Adxv and get "./adxv: Permission denied."?

    Do this:

    chmod +x ./adxv

    What if the Image Window doesn't refresh correctly under NX?

    This is a bug in NX and should be fixed in newer versions of the NX server.

    Try typing Ctrl + Alt + E to toggle lazy encoding.

    Depending on the version of NX you have try adding adding one of the following options on the machine which is running the nxserver:

    /usr/NX/etc/node.cfg
    AgentExtraOptions="-defer 0"

    /etc/nxserver/node.conf
    AGENT_EXTRA_OPTIONS_X="-defer 0"
    If this doesn't work try setting the Link Type to "LAN". This may be slower, but may also work.

    As a last resort, try using "adxv -nopixmap"

    Is there a version of Adxv which runs under Windows?

    If you install cygwin (http://www.cygwin.com/) and the x-server packages (http://x.cygwin.com/docs/ug/setup-cygwin-x-installing.html) you can run Adxv. Adxv was compiled under Windows 8. This will also run under Windows 7, but only if you install the 32-bit version of cygwin. Thanks to Dr. Ilya Frantsuzov for this feedback.

    Adxv crashes in OSX with "Library not loaded: /usr/X11/lib/libXt.6.dylib"

    On OSX 10.10 (Yosemite) the X11 libraries were moved from /usr/X11 to /opt/X11. You can make a symbolic link from /opt/X11 to /usr/X11:

    ln -s /opt/X11 /usr/X11

    Which linux binary should I download?

    Run the "arch" command. If it prints x86_64, download one of these, otherwise try the i686 versions. There are many different flavors and versions of linux. If none of the binaries here will run on your system, let me know.

    Download

    Current version is 1.9.14
    adxv.i686CentOS6
    adxv.i686CentOS7
    adxv.x86_64CentOS6
    adxv.x86_64CentOS7
    adxv.macOSX_10.14
    adxv.macOSX_10.14.dmg
    adxv.i686Cygwin
    adxv.x86_64Cygwin
    For large displays (more than 7K x 4K pixels) the GUI is scaled 3 times larger:
    adxv.x86_64CentOS6_3X
    adxv.x86_64CentOS7_3X
    X11 only (no GL). Only needed if libGL shared library not found:
    adxv.macOSX_10.14_nogl
    adxv.macOSX_10.14_nogl.dmg
    adxv.i686CentOS6_nogl
    adxv.x86_64CentOS6_nogl
    adxv.x86_64CentOS7_nogl
    The GL versions are compiled with OpenGL and require this to be installed for dynamic linking with libGL. This is only needed if Adxv is started with the -gl command line option.

    Fonts can be downloaed from here: fonts.tar.gz (usually not needed)

    If none of these executables works on your machine or you have comments or bug reports, let me know.

    Documentation

    AdxvUserManual.pdf  (Version 1.4b)

    Contact


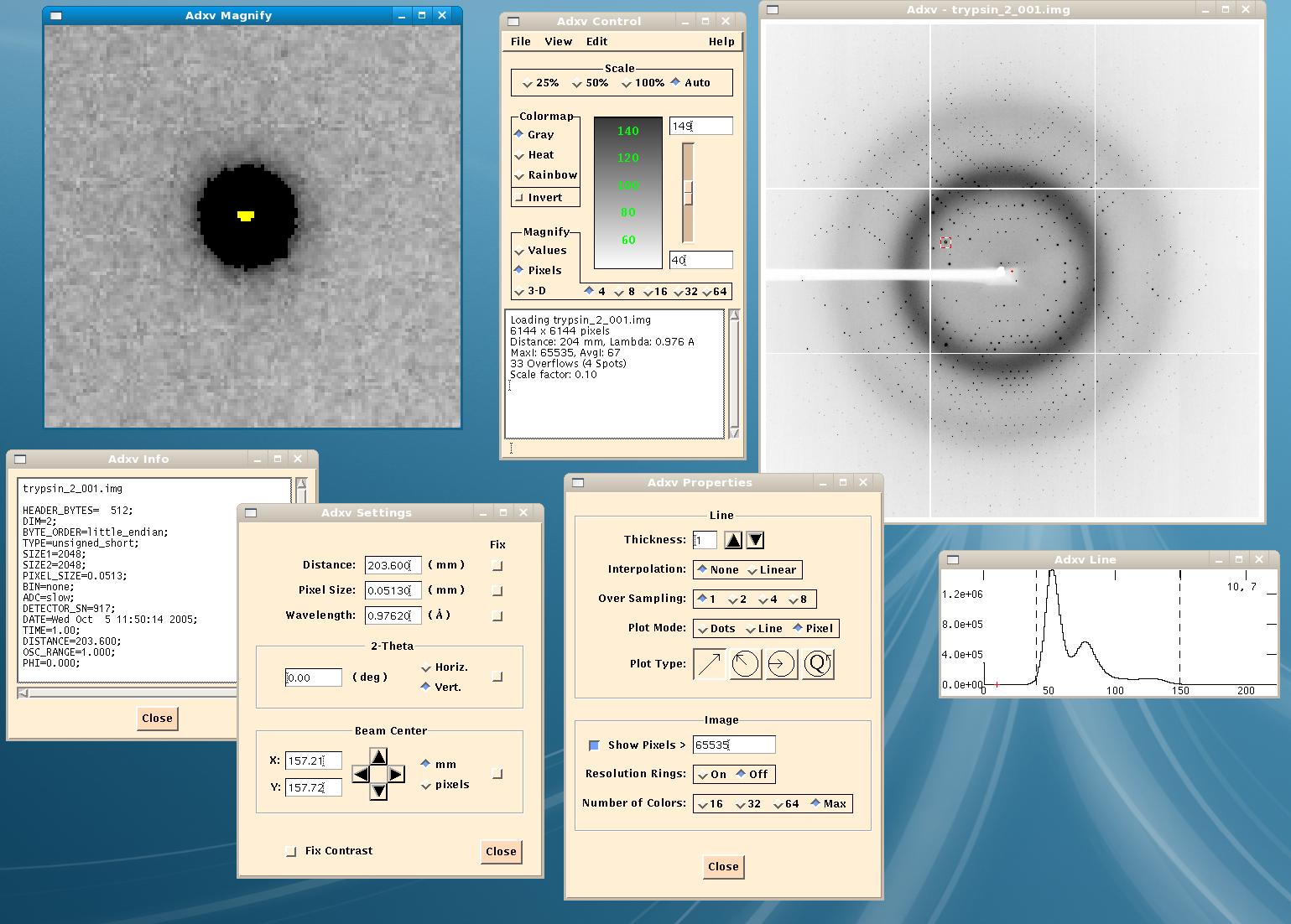

    Screen Shots

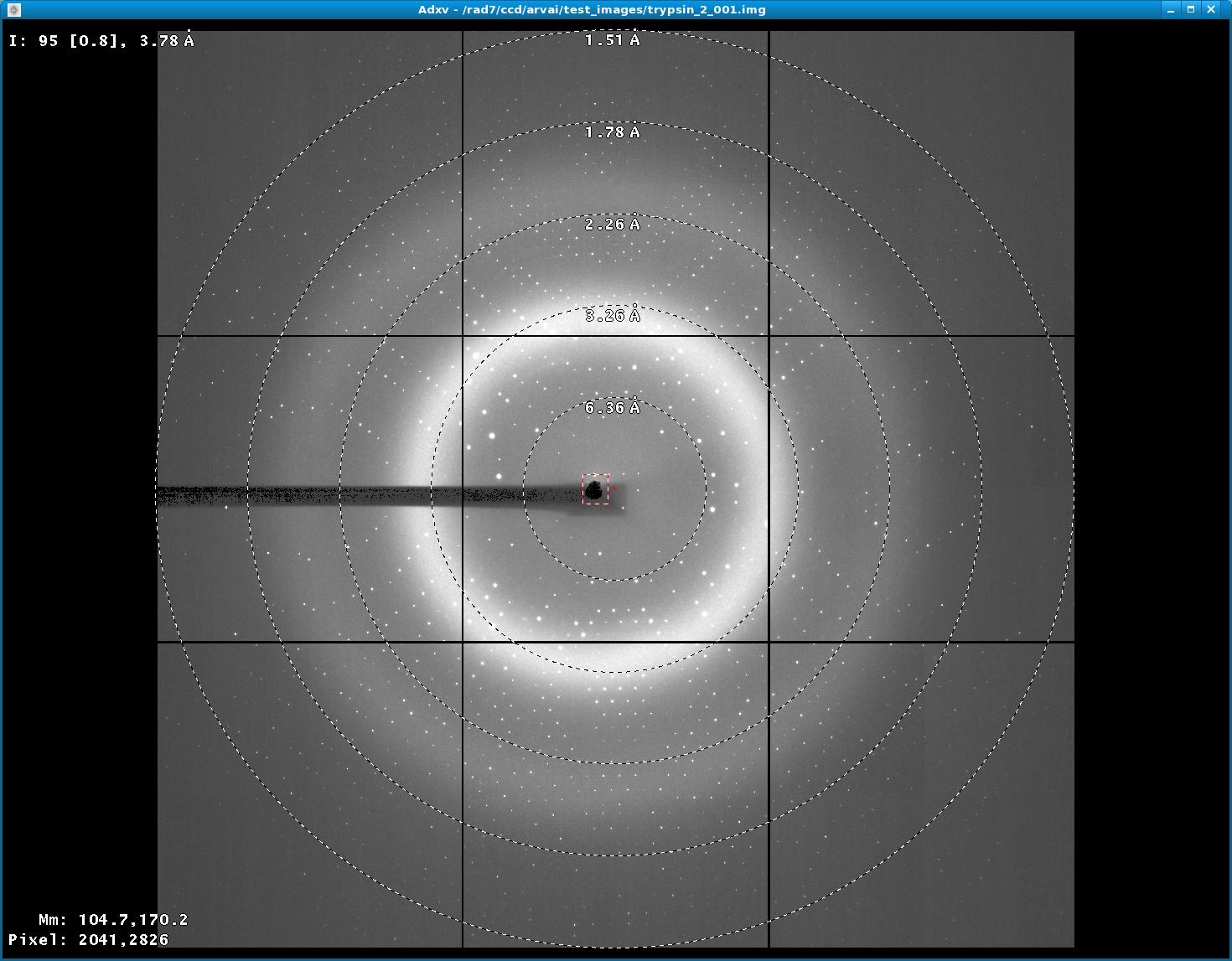

    Inverted Gray Colormap

    Heat

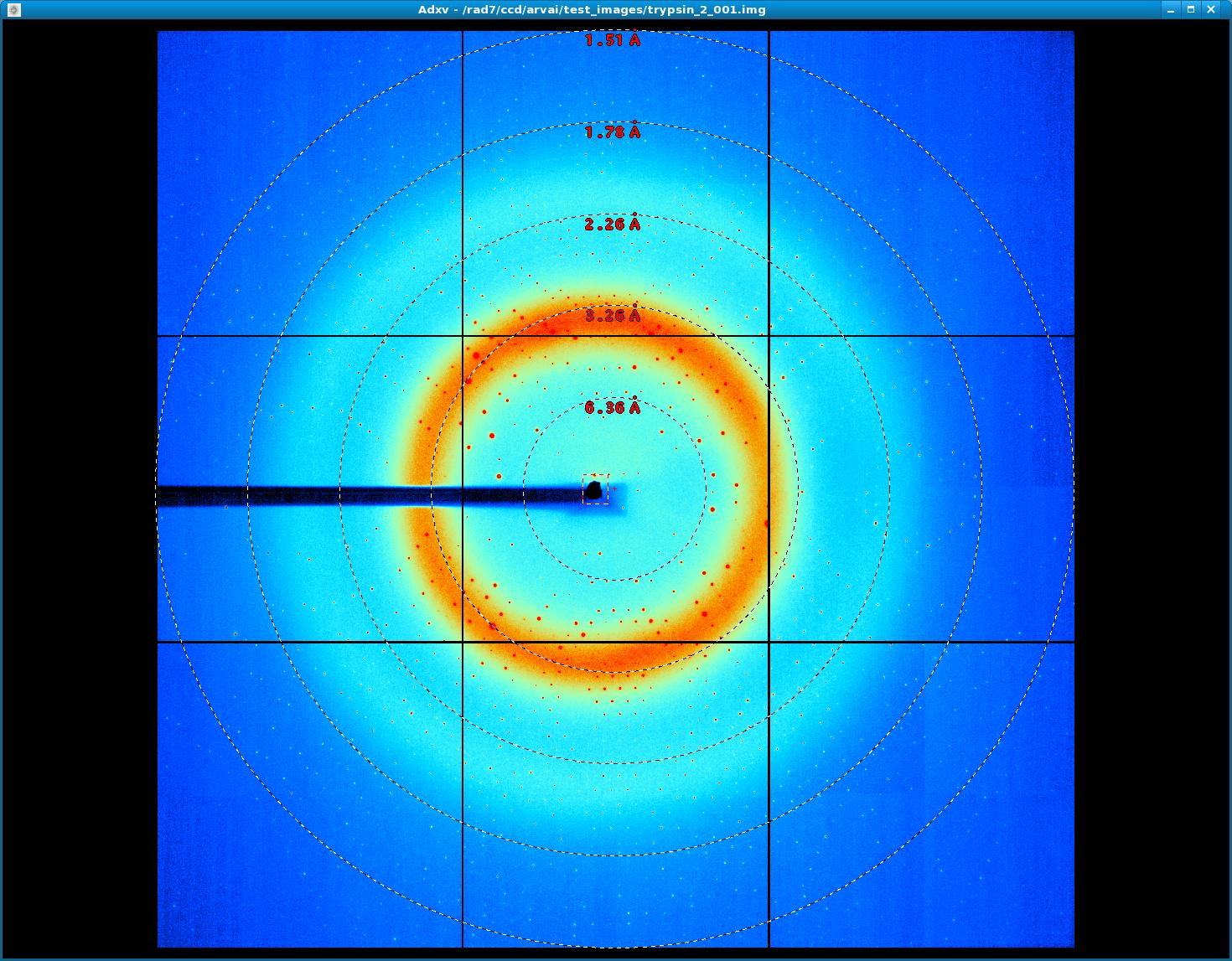

    Rainbow

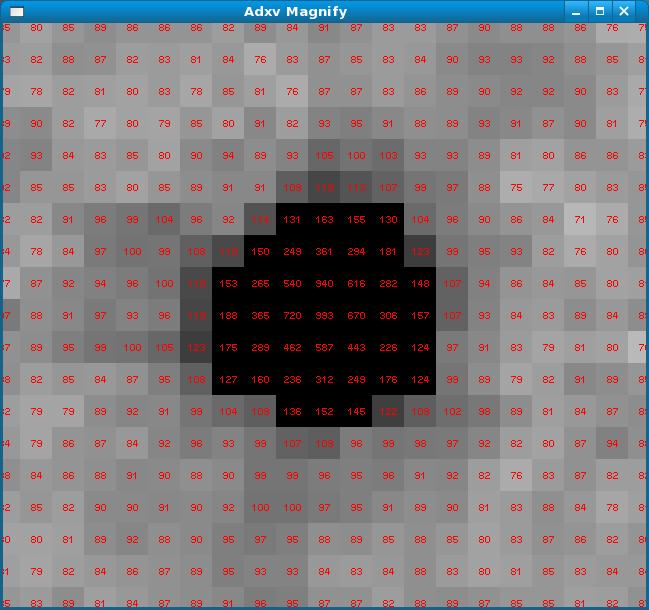

    Pixel Magnify

    3-D Pixels

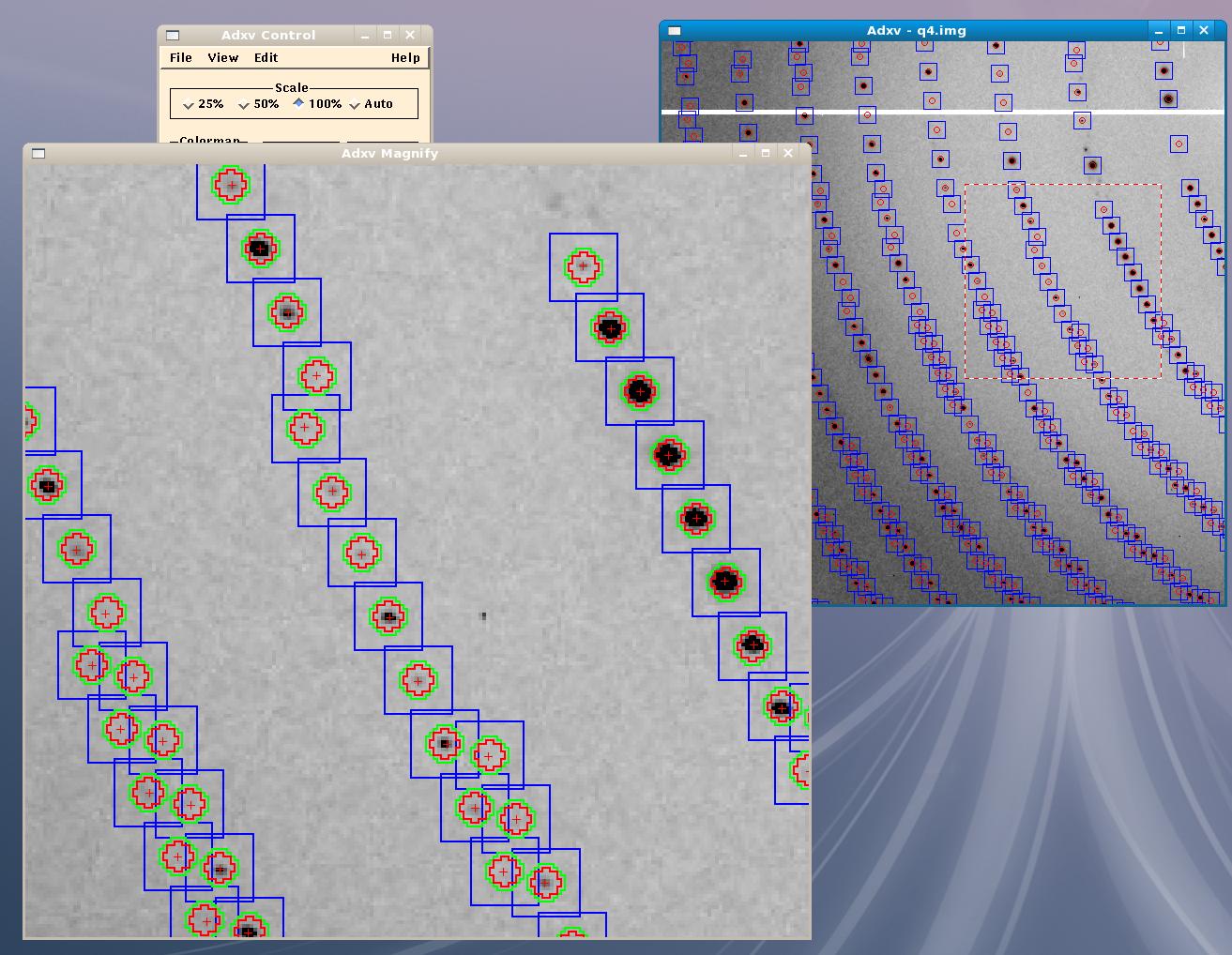

    Predictions



    2-D magnify

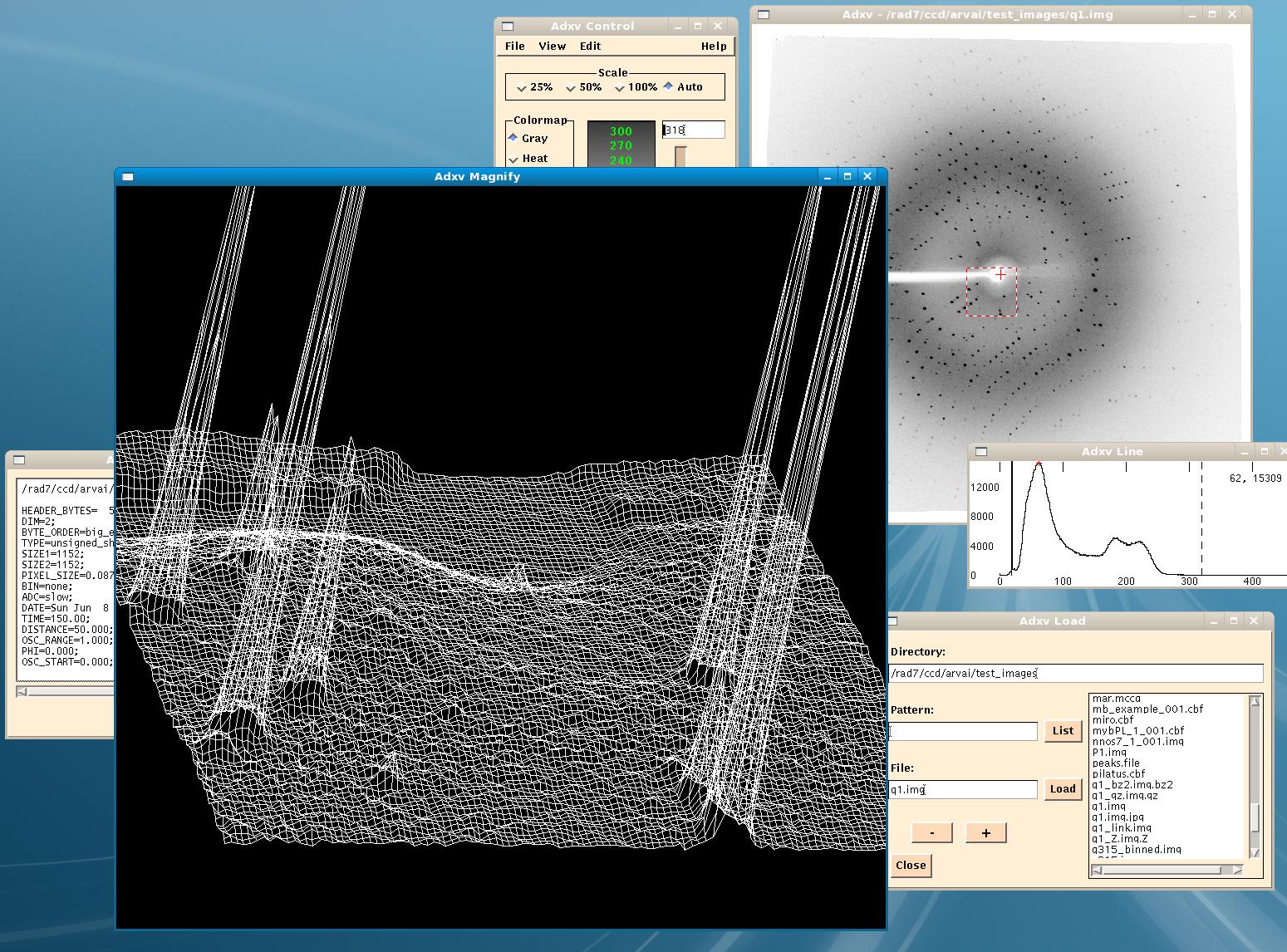

    3-D magnify

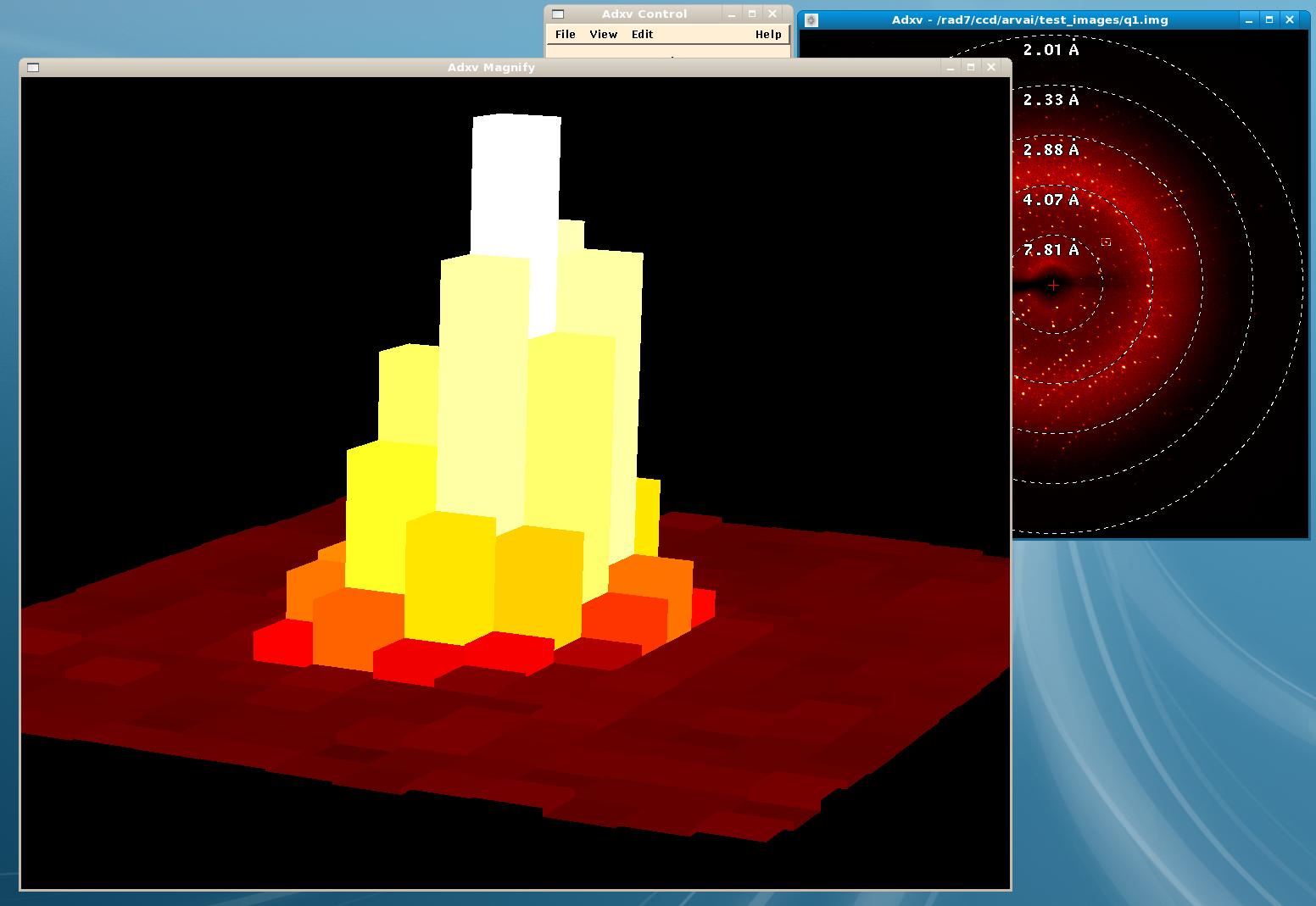

    GL 3-D pixels

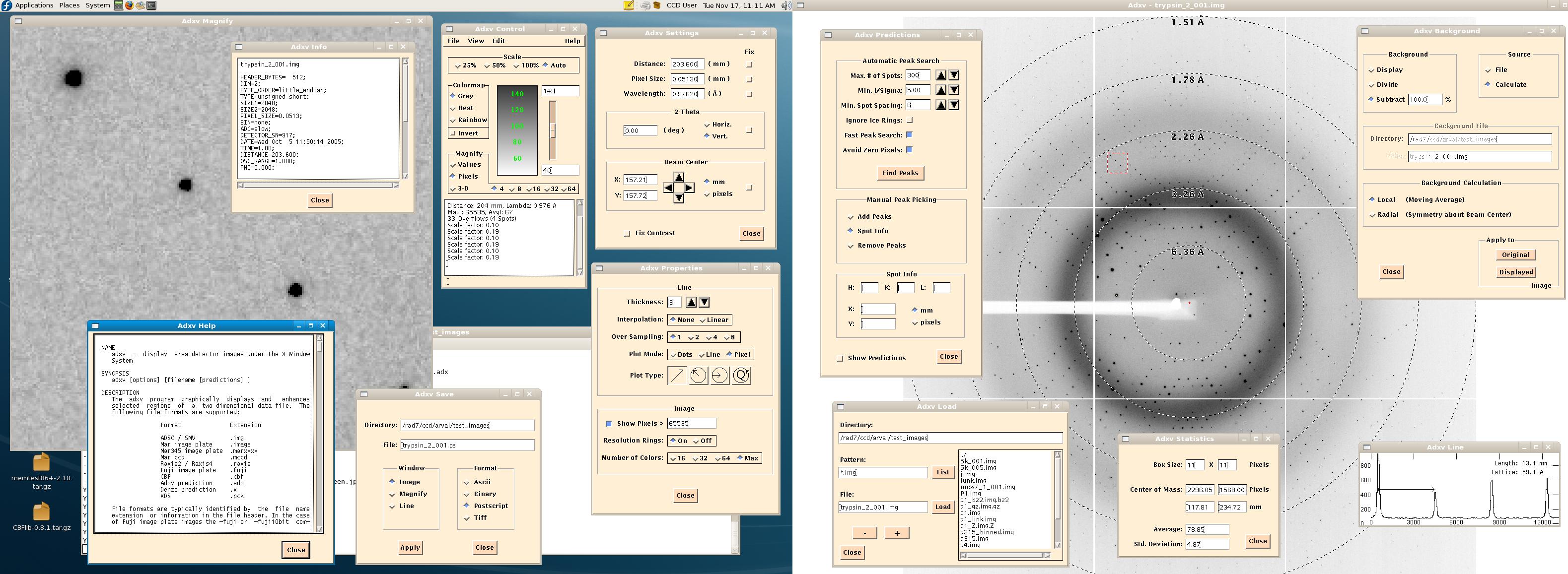

    Full Screen
