IMAGES FOR GATAN
CCD camera at Scripps Research Institute
Milligan Lab
The following images were taken accordingly:
The CCD camera was cooled for one hour prior to usage. A gain reference was taken at t=0 hours to normalize the CCD camera.

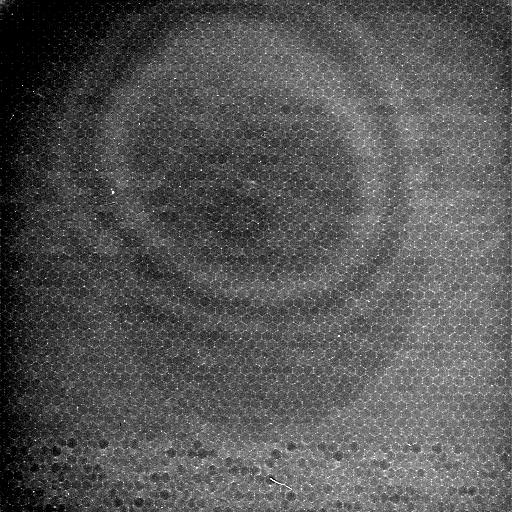

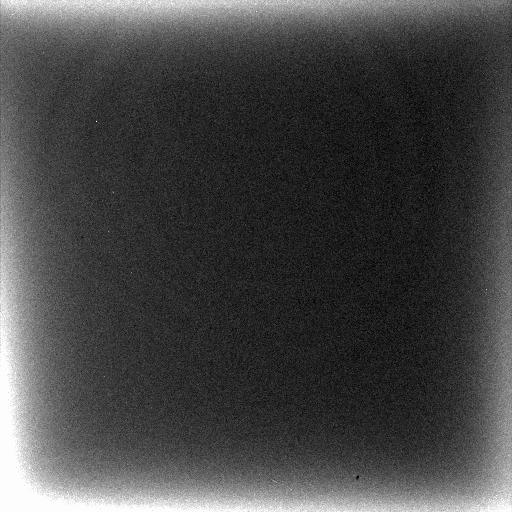

Hour Zero Gain Referencegain reference for time 0 image Time 0 Image0 HOUR image after gain reference

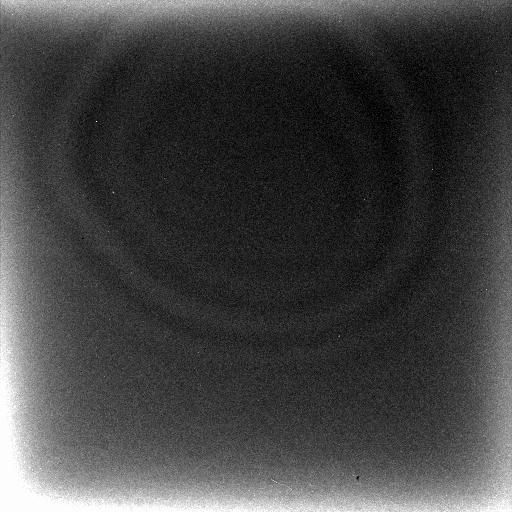

After 1 Hour (no gain reference)


After 2 Hour (no gain reference)

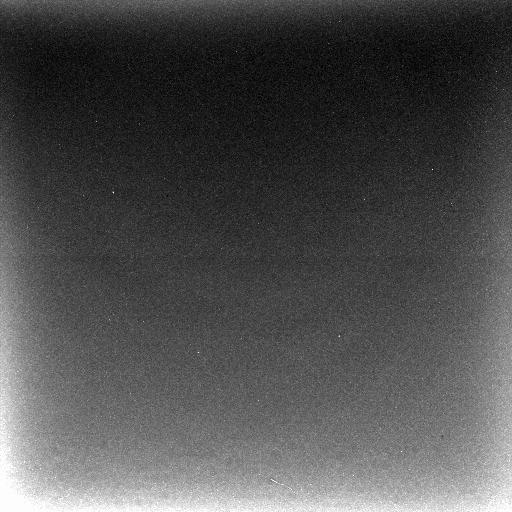

AFter 3 Hours (just after another gain reference)


AFter 4 Hours (just after another gain reference)


AFter 5 Hours (just after another gain reference)


After 6 Hours (no gain reference)


After 7 Hours (no gain reference)
